PRODUCT INFORMATION
The Perfect Fit for Any Space

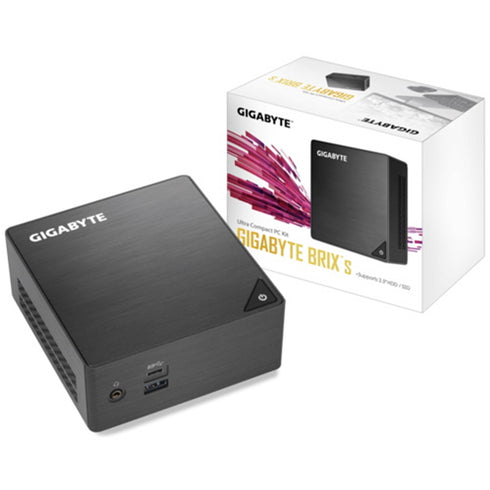

Challenging the essence of how we define a desktop PC, GIGABYTE engineers have developed an ultra compact PC with a brushed aluminum surface chassis design.
Ideal for a broad range of computing applications at home or in the office, the BRIX expounds sheer simplicity and convenience.
With a broad choice of processors covering the entire performance spectrum, the BRIX sets a new standard for desktop miniaturization that makes it perfect as a discreet HTPC/multimedia hub, an ultra-low power PC for the family, an office PC or as a digital signage unit.
Intel Celeron Processor
GIGABYTE BRIX supports Intel third-generation low-power quad-core SoC processors which feature power-efficient 10W Intel Celeron models.
From a simple internet access point to a high end multimedia station, the GIGABYTE BRIX a broad range of usage scenarios and the ultimate space flexibility.
GIGABYTE BRIX is expected to deliver up to 23% improvement in productivity over previous generation.
Supports DDR4 Memory
GIGABYTE BRIX provides a 128-bit memory controller that supports DDR4 at up to 2400MHz. DDR4 is a type of synchronous dynamic random-access memory with a double data rate and high bandwidth interface.
The primary advantages of DDR4 over its predecessor, DDR3, include higher module density and lower voltage requirements, coupled with higher data rate transfer speeds.
Connecting the Future - USB Type-C: The World's Next Universal Connector:
Reversible USB Type-C with USB 3.0
The USB Type-C is a new reversible connector that is loaded with useful features such as USB 3.0 support for 5 Gb/s transfer speed.
USB 3.0 and Network Connectivity
GIGABYTE BRIX also includes a M.2 module offering IEEE 802.11ac Wi-Fi and the latest Bluetooth 4.2, providing connectivity for low power Bluetooth users to easily connect mobile devices.
USB Type-C is a new reversible connector.
Supporting the Newest Standards in Multimedia
GIGABYTE ensures users won't be limited by the standards or connections on the BRIX, by including HDMI 2.0 and support for HDCP 2.2 users can rest assured that their device will be able to display content to its full potential.
The BRIX supports native resolutions of 4K at 60Hz, presenting unrivaled visual clarity and stunning realism to owners of UHD displays.
HDMI port support HDMI 2.0 and HDCP 2.2.
Multi-display productivity with HDMI 2.0 & DisplayPort
BRIX supports up to three independent displays through HDMI 2.0 and a DisplayPort without the need for an additional graphics card.
Support for two display is only possible with daisy-chain connections through Display Port.
Graphics that Captivate
Intel HD Graphics deliver 10% more performance than its predecessor. With the new media engine users are able to, watch, create, edit, share and game all with captivating visuals.
This media engine offers HEVC 10-bit hardware acceleration which improves upon the 4K viewing and content creation performance significantly versus previous generation processors.
The BRIX now has the ability to drive premium content up to 4K UHD, so users can enjoy amazing and vibrant multimedia experiences on compatible displays.
2.5" Hard Drive Support
Utilizing SATA III 6 Gb/s high speed data transfer technology, the GIGABYTE BRIXs supports the installation of one 2.5” SATA 6Gbps HDD or Solid State Drive (SSD) and one M.2 2280 SSD module.
This allows for optimized storage configurations which combine fast M.2 performance with larger capacity 2.5” hard drive.
Feature may vary by model.
VESA Support
Bundled with a VESA bracket, the GIGABYTE BRIX can easily be mounted behind a monitor or HDTV, offering a simple and effective way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit.
SPECIFICATION
Dimension:
46.8 mm x 112.6 mm x 119.4 mm (1.84" x 4.43" x 4.7")
Motherboard Size:
105 x 110 mm
CPU:
Intel Celeron Processor J4105
2.5GHz, 4 core (TDP 10W)
Memory:
2 x SO-DIMM DDR4 slots
2400MHz
Max. 8GB
LAN:
Gigabit LAN (Realtek RTL8111HS)
Wifi Card:
Intel Dual Band Wireless-AC 3168
Graphics:
Intel UHD Graphics 600
Audio:
Realtek ALC255
HDMI Resolution (Max.):
HDMI2.0a
4096 x 2160 @ 60 Hz
Mini DP Resolution (Max.):
DP1.2a
4096 x 2160 @ 60Hz
Storage:
Supports 2.5" HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)
Expansion Slots:
1 x M.2 slot (2280_storage) PCIe X2/SATA
1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card
Front I/O:
1 x USB3.0
1 x USB3.0 type C
1 x headphone jack with MIC
Rear I/O:
1 x HDMI(2.0a)
1 x mini DisplayPort (1.2a)
2 x USB 3.0
1 x RJ45
1 x DC-In
1 x Kensington lock slot
Power Supply:
Input: AC 100-240V
Output: DC 19V
2.1A
VESA:
Bracket included
Supports 75 x 75 and 100 x 100 mm
Support OS:
WIN10 64bit
Environment:
System Environment Operating Temperature: 0°C to +35°C
System Storage Temperature: -20°C to +60°C
Challenging the essence of how we define a desktop PC, GIGABYTE engineers have developed an ultra compact PC with a brushed aluminum surface chassis design.
Ideal for a broad range of computing applications at home or in the office, the BRIX expounds sheer simplicity and convenience.
With a broad choice of processors covering the entire performance spectrum, the BRIX sets a new standard for desktop miniaturization that makes it perfect as a discreet HTPC/multimedia hub, an ultra-low power PC for the family, an office PC or as a digital signage unit.
Intel Celeron Processor
GIGABYTE BRIX supports Intel third-generation low-power quad-core SoC processors which feature power-efficient 10W Intel Celeron models.
From a simple internet access point to a high end multimedia station, the GIGABYTE BRIX a broad range of usage scenarios and the ultimate space flexibility.
GIGABYTE BRIX is expected to deliver up to 23% improvement in productivity over previous generation.
Supports DDR4 Memory
GIGABYTE BRIX provides a 128-bit memory controller that supports DDR4 at up to 2400MHz. DDR4 is a type of synchronous dynamic random-access memory with a double data rate and high bandwidth interface.
The primary advantages of DDR4 over its predecessor, DDR3, include higher module density and lower voltage requirements, coupled with higher data rate transfer speeds.
Connecting the Future - USB Type-C: The World's Next Universal Connector:
Reversible USB Type-C with USB 3.0
The USB Type-C is a new reversible connector that is loaded with useful features such as USB 3.0 support for 5 Gb/s transfer speed.
USB 3.0 and Network Connectivity
GIGABYTE BRIX also includes a M.2 module offering IEEE 802.11ac Wi-Fi and the latest Bluetooth 4.2, providing connectivity for low power Bluetooth users to easily connect mobile devices.
USB Type-C is a new reversible connector.
Supporting the Newest Standards in Multimedia
GIGABYTE ensures users won't be limited by the standards or connections on the BRIX, by including HDMI 2.0 and support for HDCP 2.2 users can rest assured that their device will be able to display content to its full potential.
The BRIX supports native resolutions of 4K at 60Hz, presenting unrivaled visual clarity and stunning realism to owners of UHD displays.
HDMI port support HDMI 2.0 and HDCP 2.2.
Multi-display productivity with HDMI 2.0 & DisplayPort
BRIX supports up to three independent displays through HDMI 2.0 and a DisplayPort without the need for an additional graphics card.
Support for two display is only possible with daisy-chain connections through Display Port.
Graphics that Captivate
Intel HD Graphics deliver 10% more performance than its predecessor. With the new media engine users are able to, watch, create, edit, share and game all with captivating visuals.
This media engine offers HEVC 10-bit hardware acceleration which improves upon the 4K viewing and content creation performance significantly versus previous generation processors.
The BRIX now has the ability to drive premium content up to 4K UHD, so users can enjoy amazing and vibrant multimedia experiences on compatible displays.
2.5" Hard Drive Support
Utilizing SATA III 6 Gb/s high speed data transfer technology, the GIGABYTE BRIXs supports the installation of one 2.5” SATA 6Gbps HDD or Solid State Drive (SSD) and one M.2 2280 SSD module.
This allows for optimized storage configurations which combine fast M.2 performance with larger capacity 2.5” hard drive.
Feature may vary by model.
VESA Support
Bundled with a VESA bracket, the GIGABYTE BRIX can easily be mounted behind a monitor or HDTV, offering a simple and effective way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit.
SPECIFICATION
Dimension:
46.8 mm x 112.6 mm x 119.4 mm (1.84" x 4.43" x 4.7")
Motherboard Size:
105 x 110 mm
CPU:
Intel Celeron Processor J4105
2.5GHz, 4 core (TDP 10W)
Memory:
2 x SO-DIMM DDR4 slots
2400MHz
Max. 8GB
LAN:
Gigabit LAN (Realtek RTL8111HS)
Wifi Card:
Intel Dual Band Wireless-AC 3168
Graphics:
Intel UHD Graphics 600
Audio:
Realtek ALC255
HDMI Resolution (Max.):
HDMI2.0a
4096 x 2160 @ 60 Hz
Mini DP Resolution (Max.):
DP1.2a
4096 x 2160 @ 60Hz
Storage:
Supports 2.5" HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)
Expansion Slots:
1 x M.2 slot (2280_storage) PCIe X2/SATA
1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card
Front I/O:
1 x USB3.0
1 x USB3.0 type C
1 x headphone jack with MIC
Rear I/O:
1 x HDMI(2.0a)
1 x mini DisplayPort (1.2a)
2 x USB 3.0
1 x RJ45
1 x DC-In
1 x Kensington lock slot
Power Supply:
Input: AC 100-240V
Output: DC 19V
2.1A
VESA:
Bracket included
Supports 75 x 75 and 100 x 100 mm
Support OS:
WIN10 64bit
Environment:
System Environment Operating Temperature: 0°C to +35°C
System Storage Temperature: -20°C to +60°C
