PRODUCT INFORMATION

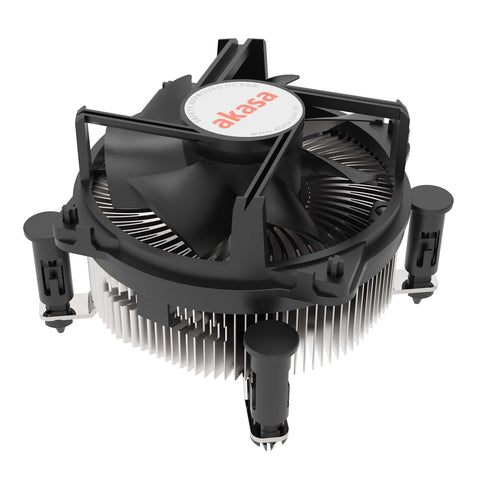

Lo-Noise and Efficient Cooling
Combines lo-noise, efficient cooling with great value. Designed to work with CPU’s up to 125W thermal design but greater cooling efficiency can be attained with efficient case airflow. Perfect for workstation desktop systems.
Intelligent and Optimised Design
Hi-performance and engineered aluminium heatsink with bi-ped fins to double the dissipation area, coupled with 90mm fan that features intelligent PWM function, delivers as much air as needed at any given time to cool the CPU. Coupled with hi-grade thermal interface pre-applied. Ensuring that the cooler delivers outstanding cooling performance.
New and Easy Mounting Design
New push-pin design to cater for the Intel LGA1700.
Array of Compatibility
Supports common desktop motherboards such as ATX, Micro-ATX, Mini-ITX, and Thin Mini-ITX.
- Height of the cooler is only 63.2mm
- Large full-height copper core for rapid heat dissipation
- Compatible with Intel LGA 1700
- Intelligent PWM and silent fan
- 90mm lo-noise and durable PWM fan
Key Features
- Tool Free Push-Pin
- Aluminium Heatsink
- Copper Core
- 43.6mm Core Diameter
- 63.2mm Height
- Compact Design
- 125W TDP
Socket Compatibility
Intel LGA 1700
Cooler Dimension
94.8 x 94.8 X 63.2mm
Heatsink Material
Aluminium with Copper Core
Thermal Design Point (TDP) Support
125W
Weight
439.1g
Installation
Push Pins
Fan Dimension
90 x 25mm
Fan Speed
500-3400 RPM (PWM controlled)
Max Airflow
40.90 CFM
Max Air Pressure
3.81 mm H2O
Max Noise Level
36 dB(A)
Current Rating
0.38A
Voltage Rating
12V DC
Bearing Type
Twin Ball Bearing
Fan Life Expectancy
80,000 hours / 25°C
Fan Connector
4-Pin PWM
Product Code
AK-CC6606BP01
Combines lo-noise, efficient cooling with great value. Designed to work with CPU’s up to 125W thermal design but greater cooling efficiency can be attained with efficient case airflow. Perfect for workstation desktop systems.
Intelligent and Optimised Design
Hi-performance and engineered aluminium heatsink with bi-ped fins to double the dissipation area, coupled with 90mm fan that features intelligent PWM function, delivers as much air as needed at any given time to cool the CPU. Coupled with hi-grade thermal interface pre-applied. Ensuring that the cooler delivers outstanding cooling performance.
New and Easy Mounting Design
New push-pin design to cater for the Intel LGA1700.
Array of Compatibility
Supports common desktop motherboards such as ATX, Micro-ATX, Mini-ITX, and Thin Mini-ITX.
- Height of the cooler is only 63.2mm
- Large full-height copper core for rapid heat dissipation
- Compatible with Intel LGA 1700
- Intelligent PWM and silent fan
- 90mm lo-noise and durable PWM fan
Key Features
- Tool Free Push-Pin
- Aluminium Heatsink
- Copper Core
- 43.6mm Core Diameter
- 63.2mm Height
- Compact Design
- 125W TDP
Socket Compatibility
Intel LGA 1700
Cooler Dimension
94.8 x 94.8 X 63.2mm
Heatsink Material
Aluminium with Copper Core
Thermal Design Point (TDP) Support
125W
Weight
439.1g
Installation
Push Pins
Fan Dimension
90 x 25mm
Fan Speed
500-3400 RPM (PWM controlled)
Max Airflow
40.90 CFM
Max Air Pressure
3.81 mm H2O
Max Noise Level
36 dB(A)
Current Rating
0.38A
Voltage Rating
12V DC
Bearing Type
Twin Ball Bearing
Fan Life Expectancy
80,000 hours / 25°C
Fan Connector
4-Pin PWM
Product Code
AK-CC6606BP01
