HYPER 212 EVO V2 WITH LGA1700 (NEW PACKAGING)

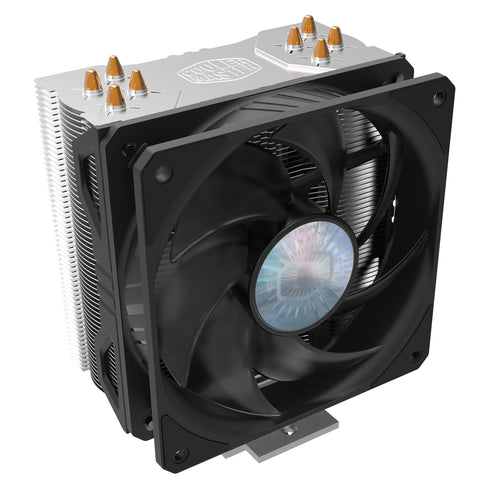

Cooler Master Hyper 212 EVO V2 is redesigned with an Asymmetrical tilt to guarantee RAM Clearance, along with revised brackets to assure the ease of installation. It is also paired with Cooler Masters' new SickleFlow 120 fan to improve cooling and acoustic performances.
100% RAM CLEARANCE
The asymmetrical heat pipe design ensures RAM compatibility and clearance space
ONLY 155MM HEIGHT
Low heatsinks for better chassis clearance
X-VENTS DESIGN
Positioned in a 45-degree angle and surrounding the heatpipe, each fin-blade features X-shaped vents that create areas of high and low air pressure, resulting in several controlled vortices. These small and chaotic turbulences produce strong gusts that reduce overall airflow but improve airflow where it matters the most - next to the heatpipes
DIRECT CONTACT TECHNOLOGY
4 heatpipes with Direct Contact Technology creates a sleek contact surface area for maximize heat dissipation
SICKLEFLOW 120 FAN
Newly Optimized blade design with updated curve that provides best balance between airflow and static pressure to take the heat away while remain extremely silence.
- Air Flow: 62CFM
- Air Pressure: 538mmH2O
QUIET OPERATION
Low vibrations and quiet fan allows for nearly inaudible levels. More than 10% decreased of fan noise level from previous model.
- SickleFlow 120 Fan: 27dBA
- Previous Model: 30dBA
- Library: 40dBA
- Livingroom: 60dBA
EASY INSTALLATION
Tool-free mounting system ensures hassle-free installation. Universal retention brackets are compatible with latest Intel and AMD socket CPU.
Model Number
RR-2V2E-18PK-R2 (LGA1700 Support for new packaging only)
Exterior Colour
Silver
Socket Compatibility
Intel: LGA1700, LGA1200, LGA2066, LGA2011-V3, LGA2011, LGA1151, LGA1150, LGA1155, LGA1156
AMD: AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1
Heat Sink Material
4 Heat Pipes
Direct Contact
Aluminium Fins
Fan Dimensions ( L x W x H )
120 x 120 x 25 mm
Fan Quantity
1
Fan Speed
650 - 1800 RPM (PWM) ± 5%
Fan Airflow
62 CFM (Max)
Fan Noise Level
8 - 27 dBA
Fan Air Pressure
2.52 mmH2O (Max)
Fan MTTF
>160,000 Hours
Fan Power Connector
4-Pin (PWM)
Fan Rated Voltage
12VDC
Fan Rated Current
0.15A
Fan Safety Current
0.37A
Fan Power Consumption
1.8W
Heatpipes
4
Product Dimensions ( L x W x H )
120 x 80 x 154 mm
Cooler Master Hyper 212 EVO V2 is redesigned with an Asymmetrical tilt to guarantee RAM Clearance, along with revised brackets to assure the ease of installation. It is also paired with Cooler Masters' new SickleFlow 120 fan to improve cooling and acoustic performances.
100% RAM CLEARANCE
The asymmetrical heat pipe design ensures RAM compatibility and clearance space
ONLY 155MM HEIGHT
Low heatsinks for better chassis clearance
X-VENTS DESIGN
Positioned in a 45-degree angle and surrounding the heatpipe, each fin-blade features X-shaped vents that create areas of high and low air pressure, resulting in several controlled vortices. These small and chaotic turbulences produce strong gusts that reduce overall airflow but improve airflow where it matters the most - next to the heatpipes
DIRECT CONTACT TECHNOLOGY
4 heatpipes with Direct Contact Technology creates a sleek contact surface area for maximize heat dissipation
SICKLEFLOW 120 FAN
Newly Optimized blade design with updated curve that provides best balance between airflow and static pressure to take the heat away while remain extremely silence.
- Air Flow: 62CFM
- Air Pressure: 538mmH2O
QUIET OPERATION
Low vibrations and quiet fan allows for nearly inaudible levels. More than 10% decreased of fan noise level from previous model.
- SickleFlow 120 Fan: 27dBA
- Previous Model: 30dBA
- Library: 40dBA
- Livingroom: 60dBA
EASY INSTALLATION
Tool-free mounting system ensures hassle-free installation. Universal retention brackets are compatible with latest Intel and AMD socket CPU.
Model Number
RR-2V2E-18PK-R2 (LGA1700 Support for new packaging only)
Exterior Colour
Silver
Socket Compatibility
Intel: LGA1700, LGA1200, LGA2066, LGA2011-V3, LGA2011, LGA1151, LGA1150, LGA1155, LGA1156
AMD: AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1
Heat Sink Material
4 Heat Pipes
Direct Contact
Aluminium Fins
Fan Dimensions ( L x W x H )
120 x 120 x 25 mm
Fan Quantity
1
Fan Speed
650 - 1800 RPM (PWM) ± 5%
Fan Airflow
62 CFM (Max)
Fan Noise Level
8 - 27 dBA
Fan Air Pressure
2.52 mmH2O (Max)
Fan MTTF
>160,000 Hours
Fan Power Connector
4-Pin (PWM)
Fan Rated Voltage
12VDC
Fan Rated Current
0.15A
Fan Safety Current
0.37A
Fan Power Consumption
1.8W
Heatpipes
4
Product Dimensions ( L x W x H )
120 x 80 x 154 mm
