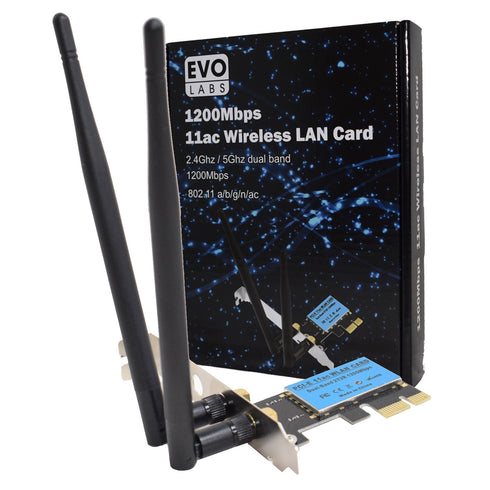

Evo Labs PCI-Express Full Height AC1200 Dual Band WiFi Card with Detachable Antennas and Low Profile Bracket

High Speed Wi-Fi – Up to 1200 Mbps Wi-Fi speeds (867 Mbps on 5 GHz band and 300 Mpbs on 2.4 GHz band)
802.11ac Dual Band – 3 times faster than the 802.11n standard, perfect for high-intensity network usage
Beam forming – Wi-Fi signals are strengthened towards certain direction where client exists
Multiple-Size Brackets – Low profile and full heigh brackets are both provided, suitable for all PCs
2x2 MIMO – Users can easily access to high-speed wireless connection
Broad Wireless Range – Two external antennas ensure greater Wi-Fi coverage and enhanced stability

Specifications

Wireless Standards
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/g/b 2.4 GHz

Host Interface
PCI Express

Signal Rate
5 GHz
11ac: Up to 867 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz
11n: Up to 300 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)

Frequency Band
2.4/5G dual band support

Radio Channel
1 - 14 channels (Universal Domain Selection)

Wireless Mode
Infrastructure Mode

Antenna Type
Two Dual Band Detachable External Antennas

Roaming
Full mobility and seamless roaming from cell to cell

Modulation
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM

Data Security
64/128-bit WEP Encryption
WPA, WPA-PSK, WPA2, WPA2-PSK. TKIP/AES

Network
Auto-switch to use 802.11AC or 802.11N or 802.11b mode
Supports Ad-Hoc, Infrastructure WLAN network
Wireless roaming
Data rate auto fall-back under noisy environment or longer range distance
Site Survey with Profile function

Configuration and Management
Plug-and-Play setup and installation
Management Utility supports 2000 / XP/ Vista

LED Indicator
Link/Act

Operating System
Windows 2000, XP, Vista, 7, 8, 10 , Linux

Weight
50g

Dimensions
120 (L) x 65 (W) x 15 (H) mm
