PRODUCT INFORMATION

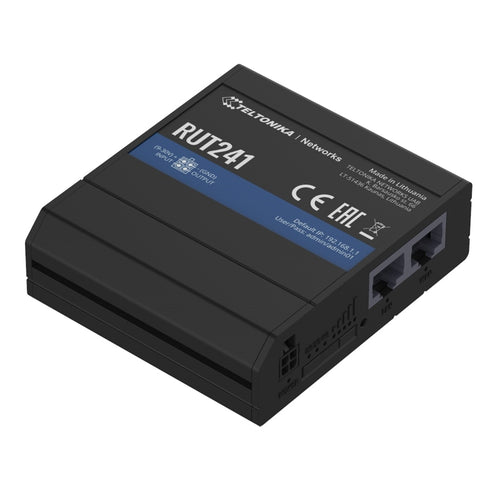

RUT241 is an updgraded version of RUT240 with more RAM memory and faster CPU speed. see full comparison below:
https://teltonika-networks.com/compare/?networking=rut240,rut241
Equipped with 4G LTE, Wi-Fi, and two Ethernet ports, RUT241 offers unstoppable connection continuity with automatic WAN failover. Industrial design, compact size, multiple connection interfaces, and compatibility with RMS make this device an excellent fit in numerous IoT and M2M solutions
Connectivity
4G LTE (Cat 4), 3G, 2G
WI-FI
Wireless Access Point with Hotspot functionality
WAN FAILOVER
Automatic switching to available Backup connection
RMS
For remote management, access & VPN services
HARDWARE
Mobile
4G/LTE (Cat 4), 3G, 2G
CPU
Mediatek MIPS 24Kc 580 MHz
Storage
16 MB Flash
Memory
128 MB RAM
Powering option
4pin power socket, 9-30 VDC
SIM
1 x External SIM holder (2FF)
Antenna connectors
2 x SMA for mobile, 1 x RP-SMA for WiFi
Ethernet
2 x 10/100 Ethernet ports: 1 x WAN (configurable as LAN), 1 x LAN
WiFi
IEEE 802.11b/g/n, Access point (AP), Station (STA)
Inputs/Outputs
On 4pin socket: 1 x Digital input, 1 x Digital open collector output
Status LEDs
3 x Connection type, 5 x Signal strength, 2 x Ethernet, 1 x Power
Operating temperature
-40 °C to 75 °C
Housing
Aluminium housing with DIN rail mounting option, plastic panels
Dimensions
(W x H x D) 83 x 25 x 74 mm
Weight
125 g
SOFTWARE
Operating system
RutOS (OpenWrt based Linux OS)
Mobile features
Auto APN, Band lock
Network protocols
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, PPPoE, DHCP, Telnet
Network
Failover (Network backup), VLAN, QoS, Load Balancing
Security
DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), Port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VPN and Tunneling
OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard
Monitoring and Management
WEB UI, CLI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS
Connection Monitoring
Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
Cloud Solutions
RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
SMS Features
SMS status, SMS configuration, Send/Read SMS via HTTP POST/GET, EMAIL to SMS, SMS to Email, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
Services
DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Traffic Logging
PACKAGE CONTENTS
RUT241
9 W PSU
2 x LTE antennas (swivel, SMA male)
1 x WiFi antenna (swivel, RP-SMA male)
Ethernet cable (1.5 m)
SIM Adapter kit
RMS Flyer
QSG (Quick Start Guide)
Packaging box
https://teltonika-networks.com/compare/?networking=rut240,rut241
Equipped with 4G LTE, Wi-Fi, and two Ethernet ports, RUT241 offers unstoppable connection continuity with automatic WAN failover. Industrial design, compact size, multiple connection interfaces, and compatibility with RMS make this device an excellent fit in numerous IoT and M2M solutions
Connectivity
4G LTE (Cat 4), 3G, 2G
WI-FI
Wireless Access Point with Hotspot functionality
WAN FAILOVER
Automatic switching to available Backup connection
RMS
For remote management, access & VPN services
HARDWARE
Mobile
4G/LTE (Cat 4), 3G, 2G
CPU
Mediatek MIPS 24Kc 580 MHz
Storage
16 MB Flash
Memory
128 MB RAM
Powering option
4pin power socket, 9-30 VDC
SIM
1 x External SIM holder (2FF)
Antenna connectors
2 x SMA for mobile, 1 x RP-SMA for WiFi
Ethernet
2 x 10/100 Ethernet ports: 1 x WAN (configurable as LAN), 1 x LAN
WiFi
IEEE 802.11b/g/n, Access point (AP), Station (STA)
Inputs/Outputs
On 4pin socket: 1 x Digital input, 1 x Digital open collector output
Status LEDs
3 x Connection type, 5 x Signal strength, 2 x Ethernet, 1 x Power
Operating temperature
-40 °C to 75 °C
Housing
Aluminium housing with DIN rail mounting option, plastic panels
Dimensions
(W x H x D) 83 x 25 x 74 mm
Weight
125 g
SOFTWARE
Operating system
RutOS (OpenWrt based Linux OS)
Mobile features
Auto APN, Band lock
Network protocols
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, PPPoE, DHCP, Telnet
Network
Failover (Network backup), VLAN, QoS, Load Balancing
Security
DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), Port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VPN and Tunneling
OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard
Monitoring and Management
WEB UI, CLI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS
Connection Monitoring
Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
Cloud Solutions
RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
SMS Features
SMS status, SMS configuration, Send/Read SMS via HTTP POST/GET, EMAIL to SMS, SMS to Email, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
Services
DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Traffic Logging
PACKAGE CONTENTS
RUT241
9 W PSU
2 x LTE antennas (swivel, SMA male)
1 x WiFi antenna (swivel, RP-SMA male)
Ethernet cable (1.5 m)
SIM Adapter kit
RMS Flyer
QSG (Quick Start Guide)
Packaging box
