PRODUCT INFORMATION

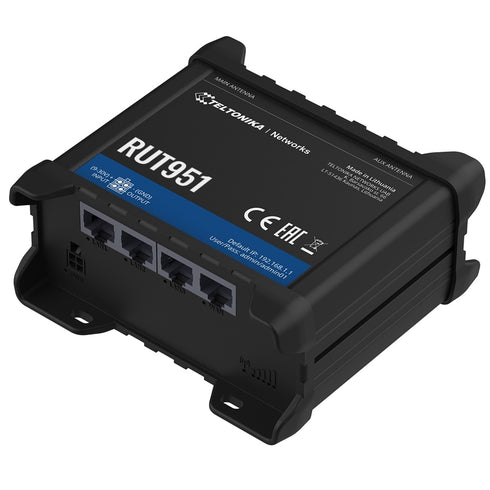

RUT951 is an upgraded version of RUT950, see comparison below. it has more RAM memory and a faster CPU than RUT940
https://teltonika-networks.com/compare/?networking=rut950,rut951
RUT951 features dual-SIM cellular connectivity combined with Wi-Fi and four Ethernet interfaces to meet the needs of the most varied IoT scenarios. Powered by RutOS, this router offers advanced customization options, automation features, and top-level security for your solution.
Connectivity
4G LTE (Cat 4), 3G, 2G
DUAL SIM
With auto failover, backup WAN and other switching scenarios
WI-FI
Wireless Access Point with Hotspot functionality
WAN FAILOVER
Automatic switching to available Backup connection
HARDWARE
Mobile
4G/LTE (Cat 4), 3G, 2G
CPU
Mediatek MIPS 24Kc 580 MHz
Storage
16 MB Flash
Memory
128 MB RAM
Powering option
4pin power socket, 9-30 VDC
SIM
1 x External SIM holder (2FF)
Antenna connectors
2 x SMA for mobile, 2 x RP-SMA for WiFi
Ethernet
4 x 10/100 Ethernet ports: 1 x WAN (configurable as LAN), 3 x LAN
WiFi
IEEE 802.11b/g/n, Access point (AP), Station (STA)
Inputs/Outputs
On 4pin socket: 1 x Digital input, 1 x Digital open collector output
Status LEDs
1 x Bi-Color connection type, 5 x Signal strength, 4 x Ethernet, 1 x Power
Housing
Aluminium housing with DIN rail mounting option, plastic panels with flat mounting option
Dimensions
(W x H x D) 110 x 50 x 100 mm
Weight
287g
SOFTWARE
Operating system
RutOS (OpenWrt based Linux OS)
Mobile features
Auto APN, Band lock SIM switch, Operator black/white list, Data/SMS limits
Network
Failover (Network backup), VLAN, QoS, Load Balancing
Routing
Static routes, Dynamic routes (BGP, OSPFv2, RIPv1/v2, EIGRP, NHRP), Routing rules
VPN and tunneling
OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard
Monitoring and Management
WEB UI, CLI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS
Connection monitoring
Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
Cloud solutions
RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
Hotspot
External/Internal Radius, SMS OTP, MAC authentication, Walled Garden
Supported Hotspot platforms
IronWiFi, HotspotSystem, Cloud4Wi, SAI + WiFi, MugiCloud, Purple.ai
SMS features
SMS status, SMS configuration, Send/Read SMS via HTTP POST/GET, EMAIL to SMS, SMS to Email, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
Services
DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Traffic Logging
PACKAGE CONTENTS
RUT951
9 W PSU
2 x LTE antennas (swivel, SMA male)
2 x WiFi antennas (swivel, RP-SMA male)
Ethernet cable (1.5 m)
SIM Adapter kit
RMS Flyer
QSG (Quick Start Guide)
Packaging box
https://teltonika-networks.com/compare/?networking=rut950,rut951
RUT951 features dual-SIM cellular connectivity combined with Wi-Fi and four Ethernet interfaces to meet the needs of the most varied IoT scenarios. Powered by RutOS, this router offers advanced customization options, automation features, and top-level security for your solution.
Connectivity
4G LTE (Cat 4), 3G, 2G
DUAL SIM
With auto failover, backup WAN and other switching scenarios
WI-FI
Wireless Access Point with Hotspot functionality
WAN FAILOVER
Automatic switching to available Backup connection
HARDWARE
Mobile
4G/LTE (Cat 4), 3G, 2G
CPU
Mediatek MIPS 24Kc 580 MHz
Storage
16 MB Flash
Memory
128 MB RAM
Powering option
4pin power socket, 9-30 VDC
SIM
1 x External SIM holder (2FF)
Antenna connectors
2 x SMA for mobile, 2 x RP-SMA for WiFi
Ethernet
4 x 10/100 Ethernet ports: 1 x WAN (configurable as LAN), 3 x LAN
WiFi
IEEE 802.11b/g/n, Access point (AP), Station (STA)
Inputs/Outputs
On 4pin socket: 1 x Digital input, 1 x Digital open collector output
Status LEDs
1 x Bi-Color connection type, 5 x Signal strength, 4 x Ethernet, 1 x Power
Housing
Aluminium housing with DIN rail mounting option, plastic panels with flat mounting option
Dimensions
(W x H x D) 110 x 50 x 100 mm
Weight
287g
SOFTWARE
Operating system
RutOS (OpenWrt based Linux OS)
Mobile features
Auto APN, Band lock SIM switch, Operator black/white list, Data/SMS limits
Network
Failover (Network backup), VLAN, QoS, Load Balancing
Routing
Static routes, Dynamic routes (BGP, OSPFv2, RIPv1/v2, EIGRP, NHRP), Routing rules
VPN and tunneling
OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard
Monitoring and Management
WEB UI, CLI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS
Connection monitoring
Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
Cloud solutions
RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
Hotspot
External/Internal Radius, SMS OTP, MAC authentication, Walled Garden
Supported Hotspot platforms
IronWiFi, HotspotSystem, Cloud4Wi, SAI + WiFi, MugiCloud, Purple.ai
SMS features
SMS status, SMS configuration, Send/Read SMS via HTTP POST/GET, EMAIL to SMS, SMS to Email, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
Services
DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Traffic Logging
PACKAGE CONTENTS
RUT951
9 W PSU
2 x LTE antennas (swivel, SMA male)
2 x WiFi antennas (swivel, RP-SMA male)
Ethernet cable (1.5 m)
SIM Adapter kit
RMS Flyer
QSG (Quick Start Guide)
Packaging box
