PRODUCT INFORMATION

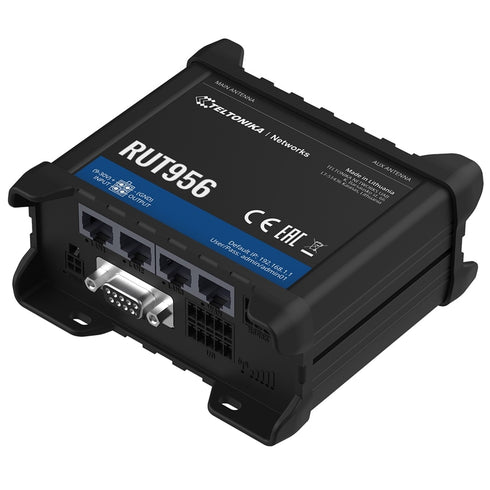

RUT956 is an industrial router that combines cellular, Wi-Fi, and wired connectivity options with automatic WAN failover and GNSS capabilities. Serial communication interfaces enable integrating more varied devices into the solution ecosystem, while I/O and advanced RutOS software facilitate equipment control, automation, and event notifications.
Connectivity
4G LTE (Cat 4), 3G, 2G
DUAL SIM
With auto failover, backup WAN and other switching scenarios
MULTIPLE INTERFACES
Ethernet, Serial (RS232, RS485) and multiple Inputs/Outputs for any industrial connectivity use case
GNSS
Global Navigation Satellite System for location services and time synchronization
HARDWARE
Mobile
4G/LTE (Cat 4), 3G, 2G
CPU
Mediatek MIPS 24Kc 580 MHz
Storage
16 MB Flash
Memory
128 MB RAM
Powering option
4pin power socket, 9-30 VDC
SIM
2 x External SIM holder (2FF)
Antenna connectors
2 x SMA for mobile, 2 x RP-SMA for WiFi, 1 x SMA for GPS
Ethernet
4 x 10/100 Ethernet ports: 1 x WAN (configurable as LAN), 3 x LAN
WiFi
IEEE 802.11b/g/n, Access point (AP), Station (STA)
GNSS
GPS, GLONASS, BeiDou, Galileo, QZSS
Inputs/Outputs
On 4pin socket: 1 x Digital input, 1 x Digital open collector output On 10pin socket: 1 x Isolated digital input, 1 x Digital dry input, 1 x Analog input, 1 x Isolated open collector output (requires external voltage), 1 x Relay output (non-latching)
Serial
1 x RS232, 1 x RS485
Other
1 x USB host
Status LEDs
1 x Bi-Color connection type, 5 x Signal strength, 4 x Ethernet, 1 x Power
Operating temperature
-40 °C to 75 °C
Housing
Aluminium housing with DIN rail mounting option, plastic panels with flat mounting option
Dimensions
(W x H x D) 110 x 50 x 100 mm
Weight
287g
SOFTWARE
Operating system
RutOS (OpenWrt based Linux OS)
Mobile features
Band lock, SIM switch, Operator black/white list, Data/SMS limits
Network
Failover (Network backup), VLAN, QoS, Load Balancing
Monitoring and Management
WEB UI, CLI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS
Cloud solutions
RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
NTP
NTP Server, NTP Client, Sync with: External NTP server, GNSS, Mobile operator
GNSS
NMEA forwarding, AVL, Geofencing
Modbus
TCP slave, TCP master, RTU master, RTU gateway, Modbus over MQTT
Serial
Console, Over IP, Modem, NTRIP, Modbus
PACKAGE CONTENTS
RUT9516 9 W PSU
2 x LTE antennas (magnetic mount, SMA male 3m cable
2 x WiFi antennas (magnetic mount, RP-SMA male, 1.5 m cable
GNSS antenna (adhesive , SMA male, 3 m cable)
RS485 connector block
I/O connector block
Ethernet cable (1.5 m)
SIM Adapter kit
QSG (Quick Start Guide)
Packaging box
Connectivity
4G LTE (Cat 4), 3G, 2G
DUAL SIM
With auto failover, backup WAN and other switching scenarios
MULTIPLE INTERFACES
Ethernet, Serial (RS232, RS485) and multiple Inputs/Outputs for any industrial connectivity use case
GNSS
Global Navigation Satellite System for location services and time synchronization
HARDWARE
Mobile
4G/LTE (Cat 4), 3G, 2G
CPU
Mediatek MIPS 24Kc 580 MHz
Storage
16 MB Flash
Memory
128 MB RAM
Powering option
4pin power socket, 9-30 VDC
SIM
2 x External SIM holder (2FF)
Antenna connectors
2 x SMA for mobile, 2 x RP-SMA for WiFi, 1 x SMA for GPS
Ethernet
4 x 10/100 Ethernet ports: 1 x WAN (configurable as LAN), 3 x LAN
WiFi
IEEE 802.11b/g/n, Access point (AP), Station (STA)
GNSS
GPS, GLONASS, BeiDou, Galileo, QZSS
Inputs/Outputs
On 4pin socket: 1 x Digital input, 1 x Digital open collector output On 10pin socket: 1 x Isolated digital input, 1 x Digital dry input, 1 x Analog input, 1 x Isolated open collector output (requires external voltage), 1 x Relay output (non-latching)
Serial
1 x RS232, 1 x RS485
Other
1 x USB host
Status LEDs
1 x Bi-Color connection type, 5 x Signal strength, 4 x Ethernet, 1 x Power
Operating temperature
-40 °C to 75 °C
Housing
Aluminium housing with DIN rail mounting option, plastic panels with flat mounting option
Dimensions
(W x H x D) 110 x 50 x 100 mm
Weight
287g
SOFTWARE
Operating system
RutOS (OpenWrt based Linux OS)
Mobile features
Band lock, SIM switch, Operator black/white list, Data/SMS limits
Network
Failover (Network backup), VLAN, QoS, Load Balancing
Monitoring and Management
WEB UI, CLI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS
Cloud solutions
RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
NTP
NTP Server, NTP Client, Sync with: External NTP server, GNSS, Mobile operator
GNSS
NMEA forwarding, AVL, Geofencing
Modbus
TCP slave, TCP master, RTU master, RTU gateway, Modbus over MQTT
Serial
Console, Over IP, Modem, NTRIP, Modbus
PACKAGE CONTENTS
RUT9516 9 W PSU
2 x LTE antennas (magnetic mount, SMA male 3m cable
2 x WiFi antennas (magnetic mount, RP-SMA male, 1.5 m cable
GNSS antenna (adhesive , SMA male, 3 m cable)
RS485 connector block
I/O connector block
Ethernet cable (1.5 m)
SIM Adapter kit
QSG (Quick Start Guide)
Packaging box
