PRODUCT INFORMATION

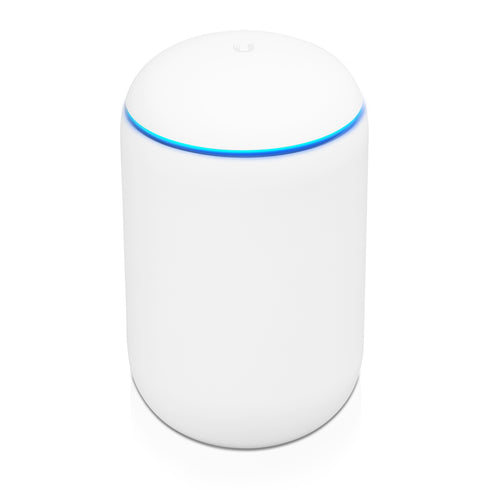

UniFi Dream Machine (UDM) is the easiest way to introduce UniFi to homes and businesses. The UDM includes everything you need for a small-scale wired or Wi-Fi network. It's easy to use and still offers all the benefits of UniFi for homes and businesses.
Features
High-Performance Dual Band 802.11ac 4x4 Wave 2 AP
Managed 4-Port Gigabit Switch
Advanced Security Gateway with IDS/IPS and DPI
UniFi Network Controller with Intuitive User Interface
Scalable Through Additional UniFi Devices Connected to LAN
Powered by Fast 1.7 GHz Quad-Core Processor
Powered by a fast 1.7 GHz quad-core processor, the UDM combines multiple functions into a single elegant device.
Integrated 4x4 Enterprise AP
The UDM delivers the requisite high-performance Wi-Fi and fits into high-density environments as part of the overall enterprise network.
Integrated Security Gateway
The UDM offers advanced firewall policies and persistent threat management to act as an Intrusion Prevention System (IPS) and Intrusion Detection System (IDS).
Integrated Cloud Key
The UniFi Network Controller can provision UniFi devices, map out networks, and quickly manage system traffic.
Integrated Gigabit Switch
The UDM provides a managed 4-port Gigabit switch so you can easily add network storage or wired client devices.
UniFi Network Controller with Intuitive User Interface
Centralized management software featuring a graphical user interface offers easy setup and convenient control.
The UniFi Network Controller is an end-to-end system of network devices across different locations — all controlled from a single interface.
HIGH-PERFORMANCE ANTENNA
802.11ac Wave 2 4x4 MU-MIMO for 5 GHz and 802.11n for 2.4 GHz
PROCESSOR
ARM Cortex-A57 Quad-Core at 1.7 GHz
ADVANCED SECURITY
Threat Management with IDS/IPS and DPI
ETHERNET PORTS
5 GbE Ports: 1 WAN and 4 LAN
VLAN SUPPORT
Security and Traffic Management
SECURE COMMUNICATIONS
VPN Server
QOS
Enterprise VoIP
Specifications
Dimensions
110 x 184.2 mm
Weight
1.05kg
Networking Interfaces
(4) LAN 10/100/1000 RJ45 Ports
(1) WAN 10/100/1000 RJ45 Port
Buttons
1x Reset
IDS/IPS Throughput
850 Mbps
Processor
Arm Cortex-A57 Quad-Core at 1.7 GHz
System Memory
2GB DDR RAM
On Board Flash Storage
16 GB
Maximum Power Consumption
26W
Supported Voltage Range
100-240VAC
Power Method
Figure of 8
Power Supply
Internal AC/DC Power Adapter (24V, 0.6A, 100 - 240VAC)
Power Saving
Supported
Beamforming
Supported
TX Power
2.4 GHz - 23 dBm
5 GHz - 26 dBm
Antenna
(1) Dual-Band, Quad-Polarity Antenna
Wi-Fi Standards
802.11 a/b/g/n/ac/ac-wave2
Wireless Standards
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF
BSSID
Up to 8 per Radio
Features
High-Performance Dual Band 802.11ac 4x4 Wave 2 AP
Managed 4-Port Gigabit Switch
Advanced Security Gateway with IDS/IPS and DPI
UniFi Network Controller with Intuitive User Interface
Scalable Through Additional UniFi Devices Connected to LAN
Powered by Fast 1.7 GHz Quad-Core Processor
Powered by a fast 1.7 GHz quad-core processor, the UDM combines multiple functions into a single elegant device.
Integrated 4x4 Enterprise AP
The UDM delivers the requisite high-performance Wi-Fi and fits into high-density environments as part of the overall enterprise network.
Integrated Security Gateway
The UDM offers advanced firewall policies and persistent threat management to act as an Intrusion Prevention System (IPS) and Intrusion Detection System (IDS).
Integrated Cloud Key
The UniFi Network Controller can provision UniFi devices, map out networks, and quickly manage system traffic.
Integrated Gigabit Switch
The UDM provides a managed 4-port Gigabit switch so you can easily add network storage or wired client devices.
UniFi Network Controller with Intuitive User Interface
Centralized management software featuring a graphical user interface offers easy setup and convenient control.
The UniFi Network Controller is an end-to-end system of network devices across different locations — all controlled from a single interface.
HIGH-PERFORMANCE ANTENNA
802.11ac Wave 2 4x4 MU-MIMO for 5 GHz and 802.11n for 2.4 GHz
PROCESSOR
ARM Cortex-A57 Quad-Core at 1.7 GHz
ADVANCED SECURITY
Threat Management with IDS/IPS and DPI
ETHERNET PORTS
5 GbE Ports: 1 WAN and 4 LAN
VLAN SUPPORT
Security and Traffic Management
SECURE COMMUNICATIONS
VPN Server
QOS
Enterprise VoIP
Specifications
Dimensions
110 x 184.2 mm
Weight
1.05kg
Networking Interfaces
(4) LAN 10/100/1000 RJ45 Ports
(1) WAN 10/100/1000 RJ45 Port
Buttons
1x Reset
IDS/IPS Throughput
850 Mbps
Processor
Arm Cortex-A57 Quad-Core at 1.7 GHz
System Memory
2GB DDR RAM
On Board Flash Storage
16 GB
Maximum Power Consumption
26W
Supported Voltage Range
100-240VAC
Power Method
Figure of 8
Power Supply
Internal AC/DC Power Adapter (24V, 0.6A, 100 - 240VAC)
Power Saving
Supported
Beamforming
Supported
TX Power
2.4 GHz - 23 dBm
5 GHz - 26 dBm
Antenna
(1) Dual-Band, Quad-Polarity Antenna
Wi-Fi Standards
802.11 a/b/g/n/ac/ac-wave2
Wireless Standards
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF
BSSID
Up to 8 per Radio
