PRODUCT INFORMATION

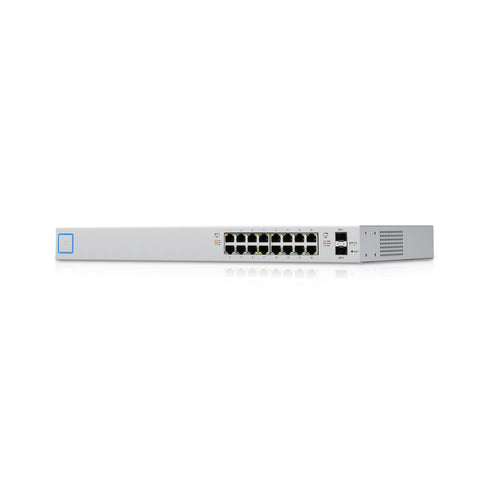

Managed PoE+ Gigabit Switch with SFP
The UniFi� Switch delivers robust performance over its 18 independent switching ports. Two SFP ports offer optical connectivity, and 16 Gigabit Ethernet ports offer 802.3af/at PoE+ or 24V passive PoE sharing a total of 150W PoE.
Versatile Mounting Options
The UniFi Switch can be placed on a desktop or mounted on a wall or in a rack.
Versatile Port Configuration
Sixteen Gigabit RJ45 ports offer different power output options: auto-sensing IEEE 802.3af/at PoE/PoE+ and 24V passive PoE, and two SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.
Integration with UniFi Controller
The UniFi Switch integrates with the UniFi Controller software for centralized management of your UniFi devices.
Advanced Enterprise Switching
The UniFi Switch supports 802.1X authentication, dynamic and static VLAN tagging, port isolation, storm control, and guest control.
Specifications
Sixteen (16) 10/100/1000 Gigabit RJ45 Ethernet ports
Two (2) Gigabit Small Form Factor SFP ports/uplinks.
Supports POE+ IEEE 802.3at/af and 24V Passive PoE
Maximum Power Consumption/budget: 150W.
Switching Capacity: 36 Gbps, forwarding: 26.78 Mpps
One (1) Serial Console Port (Reserved for Future Use)
Non-Blocking Throughput: 18 Gbps
Rack-Mountable or Wall-Mountable (brackets included)
The UniFi� Switch delivers robust performance over its 18 independent switching ports. Two SFP ports offer optical connectivity, and 16 Gigabit Ethernet ports offer 802.3af/at PoE+ or 24V passive PoE sharing a total of 150W PoE.
Versatile Mounting Options
The UniFi Switch can be placed on a desktop or mounted on a wall or in a rack.
Versatile Port Configuration
Sixteen Gigabit RJ45 ports offer different power output options: auto-sensing IEEE 802.3af/at PoE/PoE+ and 24V passive PoE, and two SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.
Integration with UniFi Controller
The UniFi Switch integrates with the UniFi Controller software for centralized management of your UniFi devices.
Advanced Enterprise Switching
The UniFi Switch supports 802.1X authentication, dynamic and static VLAN tagging, port isolation, storm control, and guest control.
Specifications
Sixteen (16) 10/100/1000 Gigabit RJ45 Ethernet ports
Two (2) Gigabit Small Form Factor SFP ports/uplinks.
Supports POE+ IEEE 802.3at/af and 24V Passive PoE
Maximum Power Consumption/budget: 150W.
Switching Capacity: 36 Gbps, forwarding: 26.78 Mpps
One (1) Serial Console Port (Reserved for Future Use)
Non-Blocking Throughput: 18 Gbps
Rack-Mountable or Wall-Mountable (brackets included)
