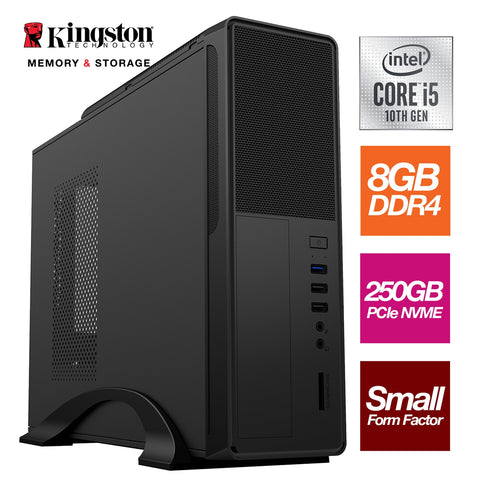

Small Form Factor - Intel i5 10400 6 Core 12 Thread 2.90GHz (4.30GHz Boost), 8GB Kingston RAM, 250GB Kingston NVMe M.2 - No Optical, Small Foot Print for Home or Office Use - Pre-Built PC

Great value with improved performance for everyday computing
The refreshed Intel Core i5-10400 6 core processor with Hyperthreading is optimised for everyday computing, with up to 4.30GHz boost, a low 65W TDP, Intel UHD Graphics and included stock cooling.

Micro slim case, is a case with a very compact design. Allowing you to save desk space, the S014B front panel is made with mesh details, along with a an 8cm fan which is included at the top for the best airflow and the S014B also comes with a silent micro SFX 300W PSU, it helps to provide the best performance business PC system.

Product Description
Small Form Factor - Intel i5 10400 6 Core 12 Thread 2.90GHz (4.30GHz Boost), 8GB Kingston RAM, 250GB Kingston NVMe M.2 - No Optical, Small Foot Print for Home or Office Use - Pre-Built PC

Processor
Intel Core i5 10400 2.9GHz 6 Core LGA 1200 Comet Lake Processor, 12 Threads, 4.3GHz Boost, Intel UHD 630 Graphics

Processor Cores
6

Processor Threads
12

Core Clock Speed
2.50GHz

Core Boost Speed
4.30Ghz

Memory
Kingston ValueRAM 8GB No Heatsink DDR4 3200MHz System Memory

Memory Configuration
1 x 8GB
2 Lanes (1 occupied)

SSD Drive
Kingston NV2 (SNV2S/250G) 250GB NVMe M.2 Interface, PCIe Gen4 x4 2280 SSD, Read 3000 MB/s, Write 1300 MB/s

Format
M.2 NVMe

Max Read/Write Speeds
Read: Up to 3000 MB/s
Write: Up to 1300 MB/s

Hard Drive
N/A

Optical Drive
N/A

Graphics
On-Chip Intel UHD Graphics 630
GPU Base Speed
350 MHz
GPU Max Speed
1.10GHz

Graphics Card I/O
N/A

Operating System
N/A

Card Reader
Built-in Card Reader - SD/MMC/MS 3in1

Networking
Motherboard - Realtek GbE LAN chip (1 Gbit/100 Mbit)

Power Supply
300W Micro ATX PSU
20 + 4 Pin ATX: 1
+12V 4 Pin CPU: 1
4 Pin Molex: 2
SATA: 3
FDD: 1

Motherboard
Asus PRIME H510M-A, Intel H510, 1200, Micro ATX, 2 DDR4, VGA, HDMI, DP, M.2

Expansion Slot
1 x PCIe 4.0 x16
2 x PCIe 3.0 x1

Storage
4 x SATA III
1 x M.2 (2242/2260/2280) - SATA & PCIe

Rear I/O
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0 Type-A
1 x DisplayPort
1 x D-Sub
1 x HDMI
1 x Intel I219-V 1Gb
3 x Audio jacks
1 x PS/2 Keyboard
1 x PS/2 Mouse

Internal I/O
1 x 4-pin CPU Fan
2 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
1 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen1
2 x USB 2.0
2 x AURA Addressable Gen2
2 x AURA RGB
1 x Clear CMOS
1 x COM Port 1 x Front Audio
1 x S/PDIF Out
1 x Speaker
1 x SPI TPM (14-1pin)
1 x 10-1 pin System Panel

Chassis
CiT S014B Thin Client Micro ATX 1 x USB 3.0 / 2 x USB 2.0 Black Case with 300W PSU

Drive Bays
1 x 5.25" External
2 x 3.5" Internal
2 x 2.5" Internal
(1 x 2.5" uses a 3.5" bay)

IO Ports
1 x USB 3.0
2 x USB 2.0
1 x HD Audio (Also Supports AC'97)
1 x Microphone
SD/TF Card Reader Included (Built-in)

Cooling
Cooling Front: None
Cooling Top: Space For 1 x 80mm Fan (inc.)
Cooling Rear: None
Cooling Side: Vent
Cooling Bottom: Vent and Space for 1 x 50mm fan (Not Included) or SSD

Dimensions
100 x 306 x 403mm

Package Weight
7 kg

Warranty
3 Years; 1st year parts including collect and return and a further 2 years labour warranty (UK mainland only)
